PYTHON MT Fasteners are a purposely designed, seismically tested and fully mechanical structural system for connecting steel and timber members onto URM brick, concrete block and soft stone masonry.
The PYTHON MT is extensively tested in a wide range of masonry substrate materials. PYTHON MT fasteners have opened doors to a wide range of structural solutions that were previously considered impractical or too costly to implement.
Minimally invasive and fully reversible, the PYTHON MT offers a mechanical structural connection to masonry that is quick, simple, and reliable.
APPLICATIONS
Reliable alternative to adhesive anchorages into masonry and URM.

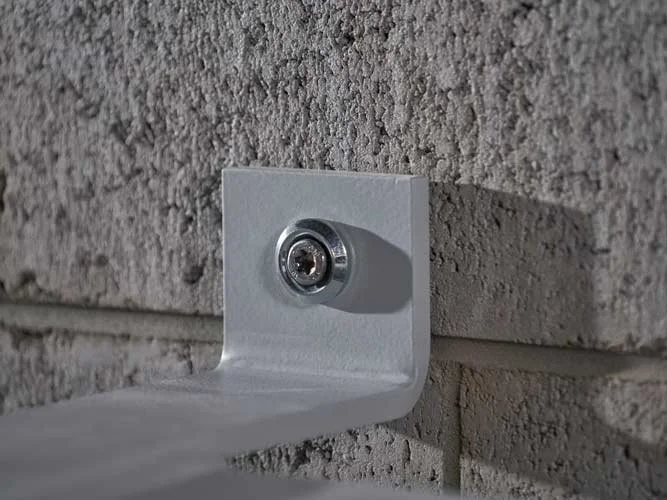

Structural connections between timber or steel members and URM or CMU masonry.
Starter studs for new shotcrete or concrete overlays, floors, and foundations.
Masonry wall to floor/roof connections.
Timber or steel strong-backs onto URM and CMU.
Steel portal or moment frames.
Plywood or CLT panel overlays.
Parapet or roof frame tie down.
Wide range of other applications, including earthquake strengthening.
FEATURES
High tension and shear capacity in a variety of masonry and URM substrates.

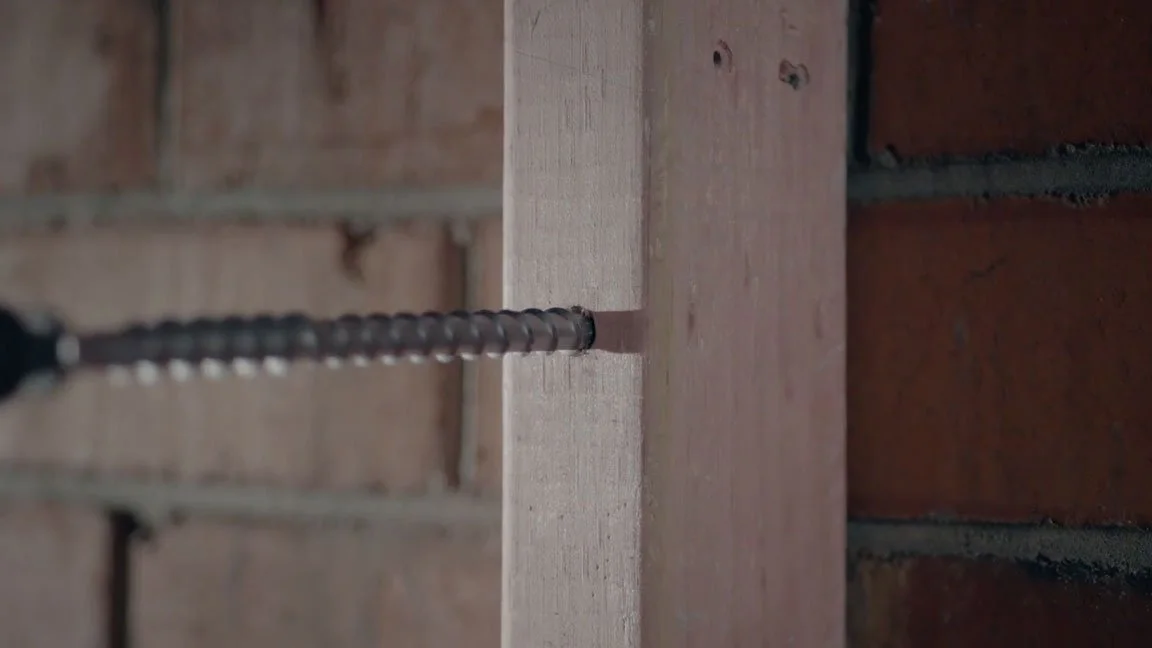

Cuts through brick on rotation for a strong and reliable mechanical bond.
Duel thread design for increased capacity in timber applications.
Dry installation, no adhesive or epoxy required.
Fast installation with no specialized tools or skills needed.
Truly versatile range of applications.
Technical
ICC-ES Evaluated - ESR-5183
Nominal shank diameter Ø 5/16" (8 mm) with total length of 6 3/8", 9", 13 1/2" (160, 230, 340 mm) - Customized lengths up to 47" (1200mm) long are available on request.
Zinc-Nickel coating, rated for external coastal environments. Tested in accordance with ASTM B117:2019 to 1500 hours of salt spray exposure (Read more).
Technical engineering design data tested for a range of substrates available (Read more).
Example construction details available (Request).
On-site quality assurance proof testing on request (Contact us).
